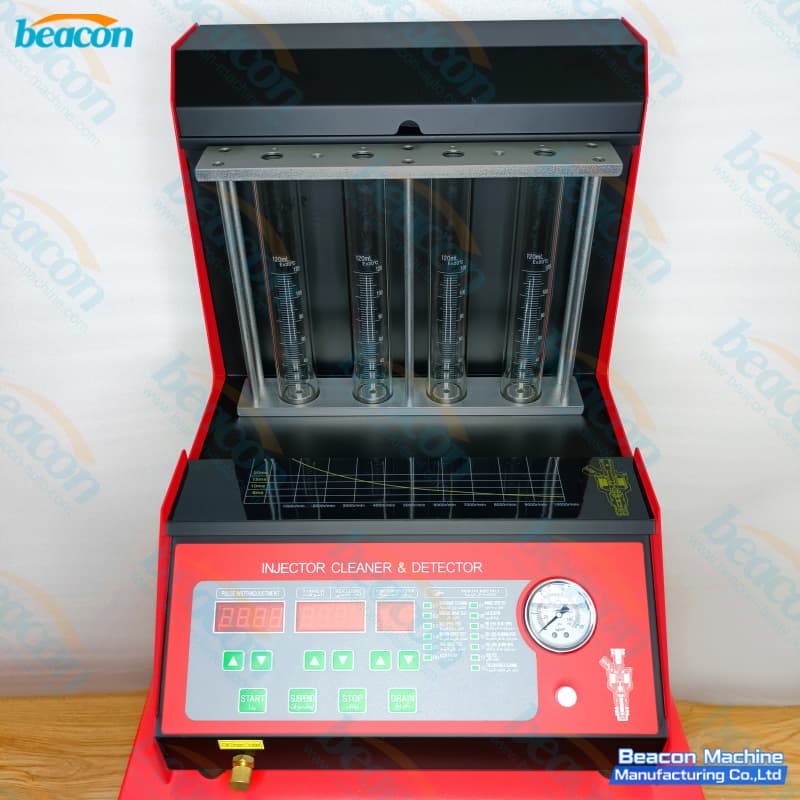

BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner

  • {BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner}
  • {BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner}
  • {BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner}
  • {BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner}

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

BC-4H 4 Cylinder Gasoline Injector Cleaner and Tester - Professional Fuel Injector Cleaner

Product Description

Engine misfires, rough idling, and poor fuel economy are common issues caused by clogged or faulty petrol injectors. The BC-4H is specifically engineered as a highly efficient
4 cylinder gasoline fuel injector diagnostic equipment to help mechanics quickly identify and resolve these problems. By visually inspecting the spray volume and atomization
in the four graduated glass tubes, technicians can easily spot malfunctioning units before they cause severe engine damage.


This compact, red-and-black desktop unit is more than just a cleaner; it is a comprehensive petrol injector leak and flow rate tester. Its built-in microprocessor allows you to
simulate various engine RPMs and pulse widths to observe real-time dynamic performance. For automotive workshops aiming to expand their service range, we highly recommend
pairing this gasoline machine with our Diesel Test Bench to offer complete fuel system diagnostic services for both light vehicles and heavy-duty trucks. Maximize your garage's
profitability with our reliable automotive gasoline injector cleaning station.

Scene picture

4 cylinder gasoline injector cleaner and tester

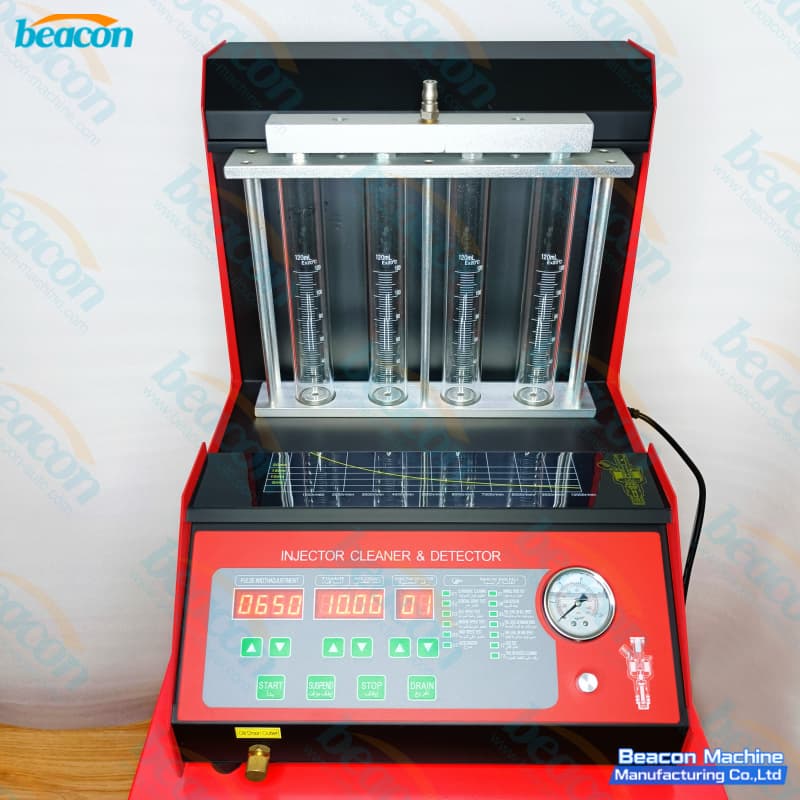

desktop petrol fuel injector diagnostic machine

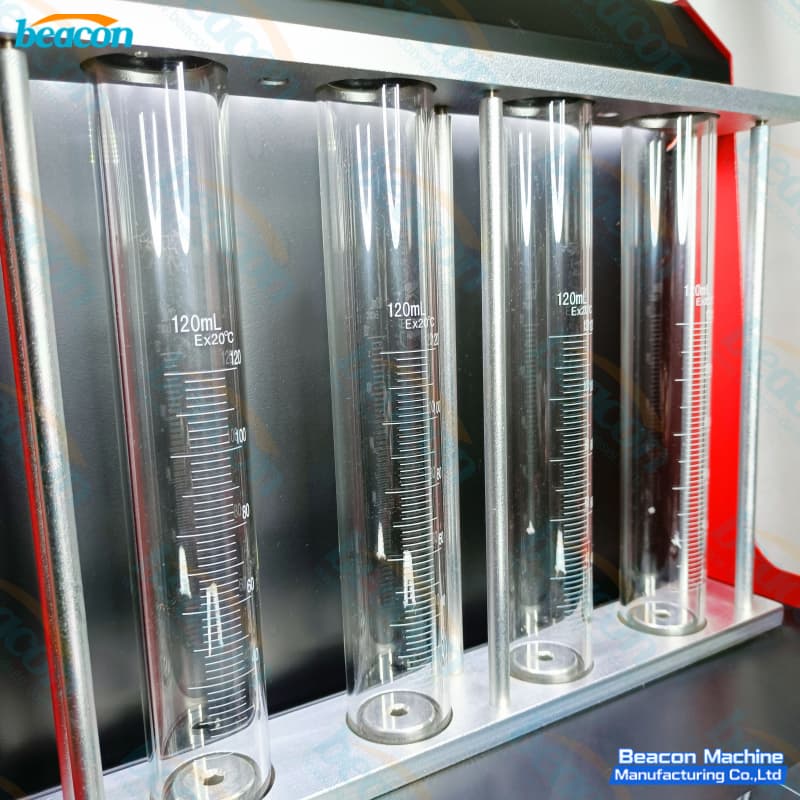

4 CYLINDER

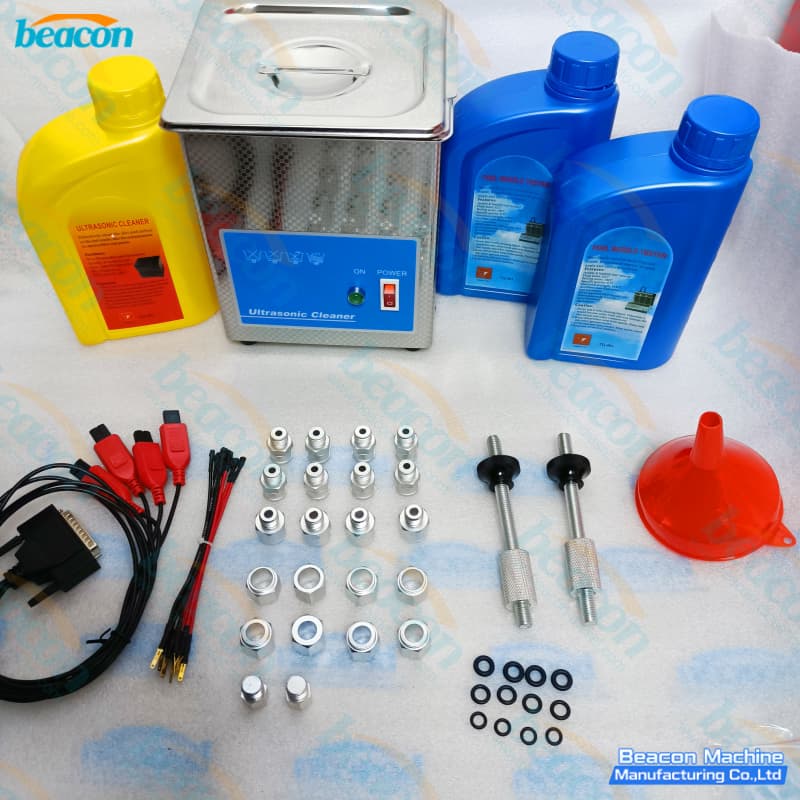

accessories for cleaning machine

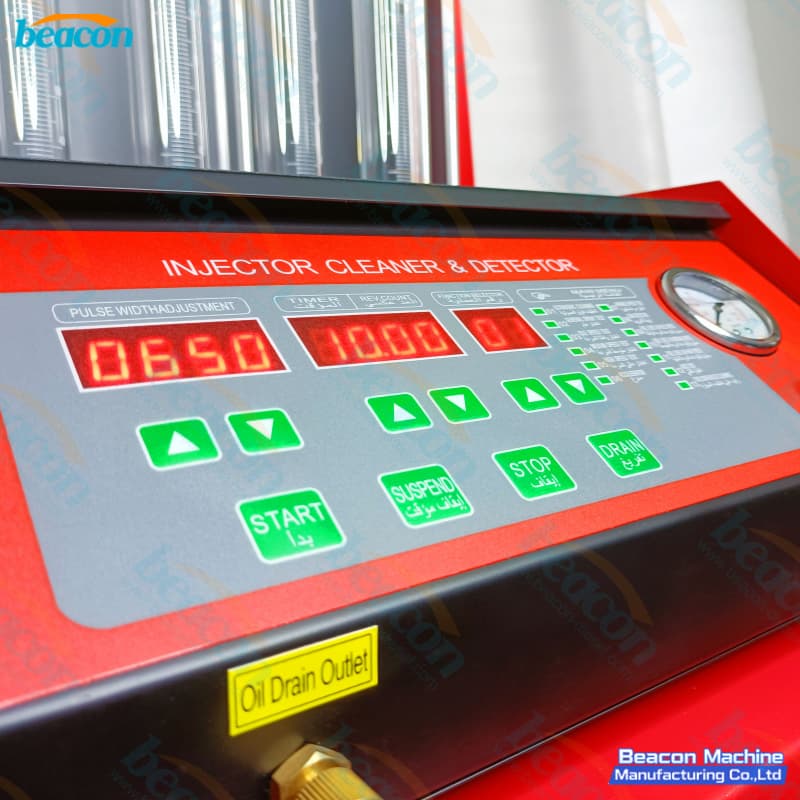

control panel

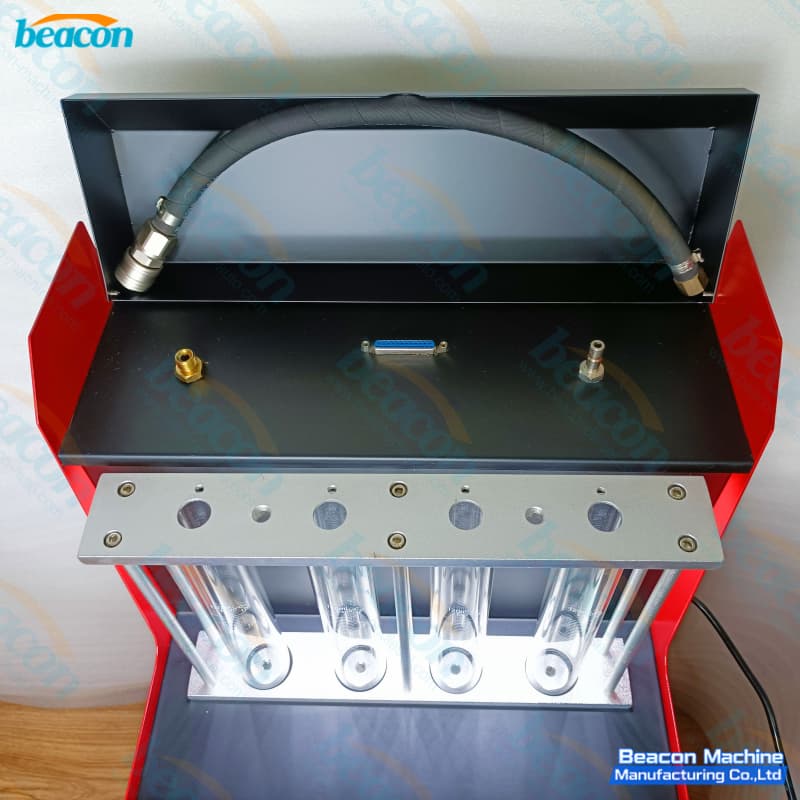

automotive gasoline injector spray pattern tester

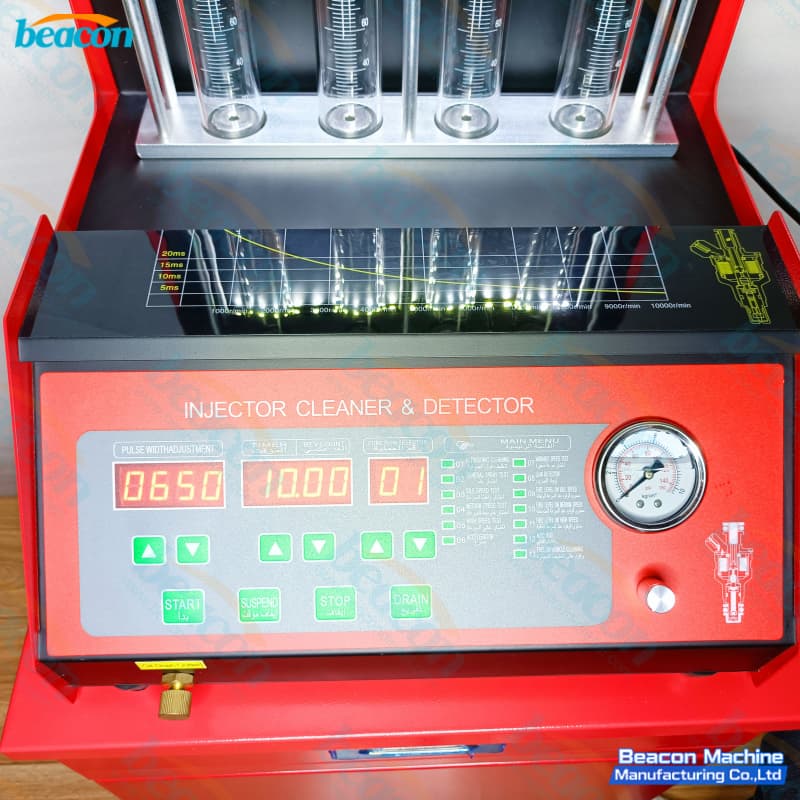

petrol engine injector flow rate testing equipment

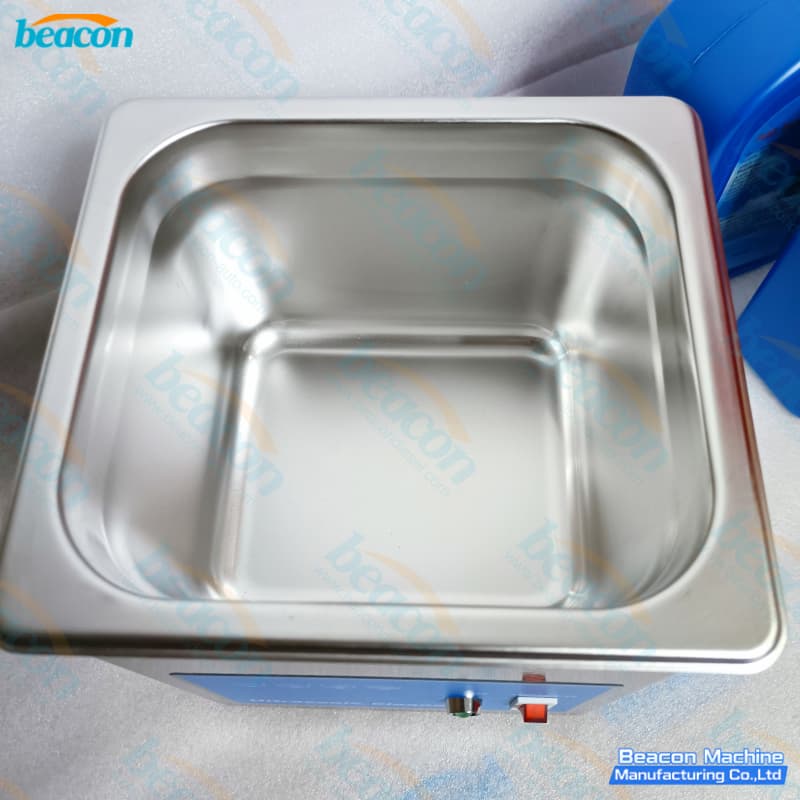

Ultrasonic Cleaner


parameter

Specification FeatureDetails
ModelBC-4H Injector Cleaner & Detector
Testing Capacity4 Cylinders / 4 Injectors simultaneously
Applicable Fuel TypeGasoline / Petrol / EFI / MPI / SFI (Not for Diesel)
Power SupplyAC 110V / 220V ±10% (50/60Hz)
System Pressure Range0 - 6.5 Bar (Adjustable via mechanical pressure gauge)
Measuring Cylinder Capacity120ml (Clear glass tubes for visual inspection)
RPM Simulation Range10 - 9999 rpm (Step: 10 rpm)
Pulse Width Range0.5 - 25 ms (Step: 0.1 ms)
Display & ControlDigital LED screen with push-button membrane panel
Core FunctionsUniformity test, Leakage test, Injecting flow test, Auto-test
External FeatureBuilt-in fuel drain valve (Push to drain)
