G4-86 PT injector disassembly and stroke measurement stand for Cummins PT injectors – Injector Stroke Measurement Stand

Product Description

The G4-86 stand is designed for combined injector disassembly and stroke measurement, offering precision and efficiency for Cummins PT injector servicing.

It supports PT injector disassembly and stroke measurement stand for Cummins PT injectors, allowing technicians to perform accurate stroke inspection during maintenance. The system also functions as a
PT injector stroke measurement fixture with disassembly function, improving workflow integration.

Additionally, it acts as a Cummins PT injector calibration and measurement tool, ensuring precise adjustment and repeatable measurement results. Its stable structure and precision alignment help maintain
injector performance while reducing operational errors in professional repair environments.

Scene picture

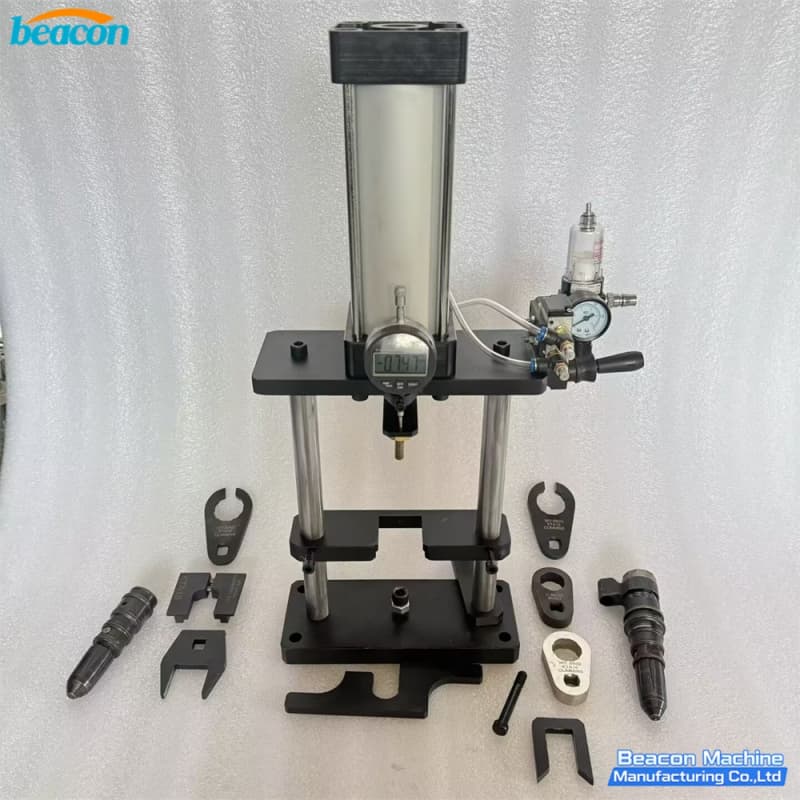

PT injector disassembly and stroke measurement stand for Cummins PT injectors

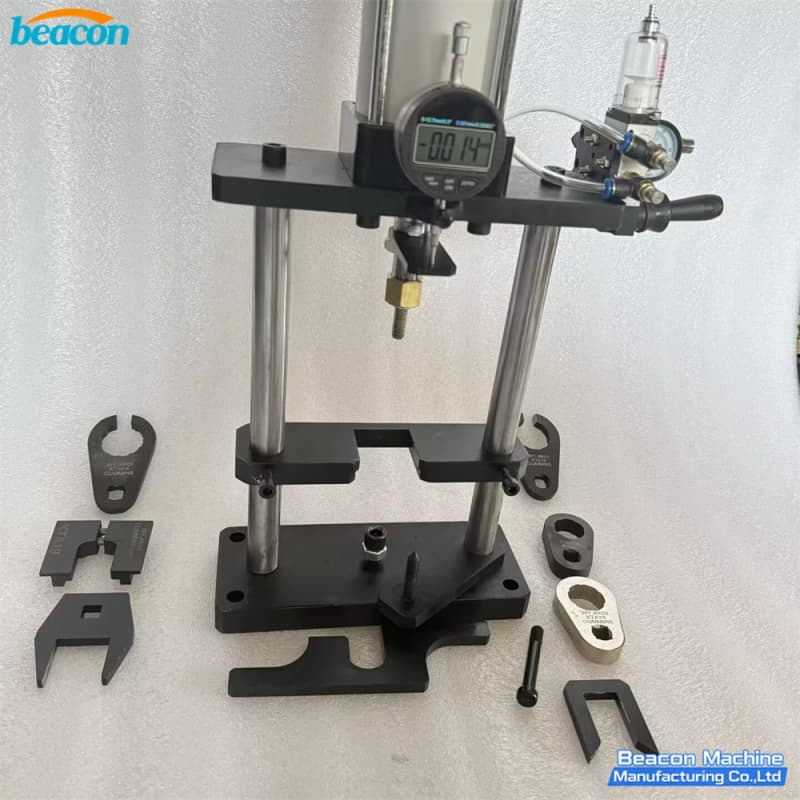

PT injector stroke measurement fixture with disassembly function

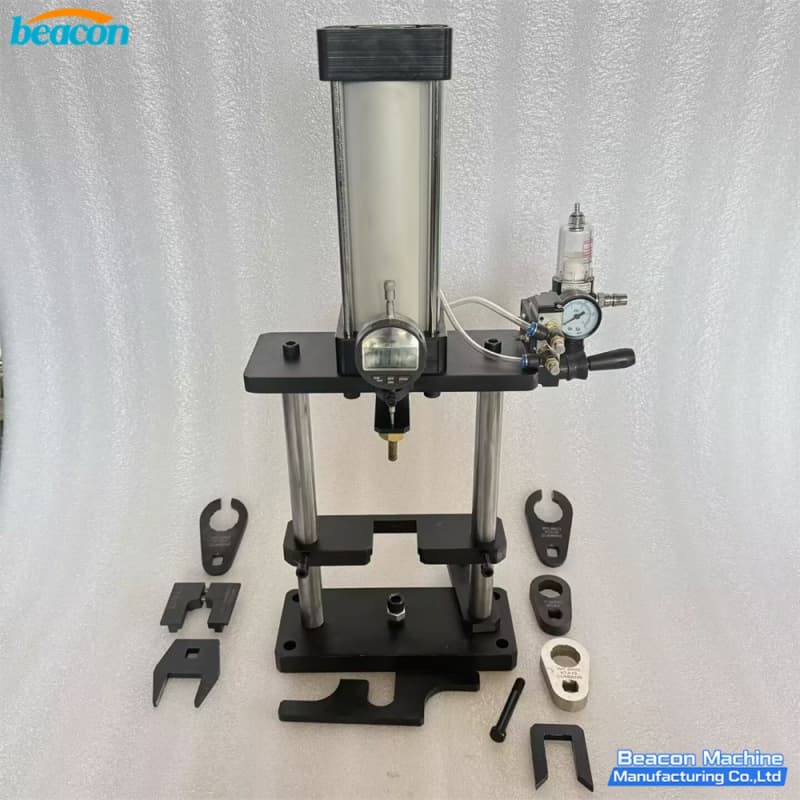

Cummins PT injector calibration and measurement tool

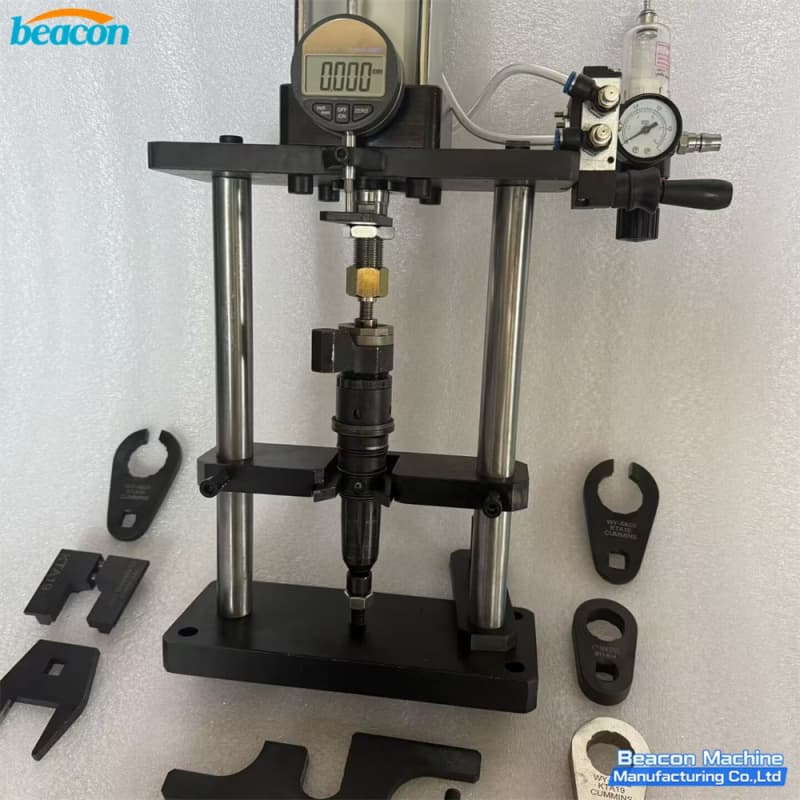

PT injector stroke testing stand for diesel engines

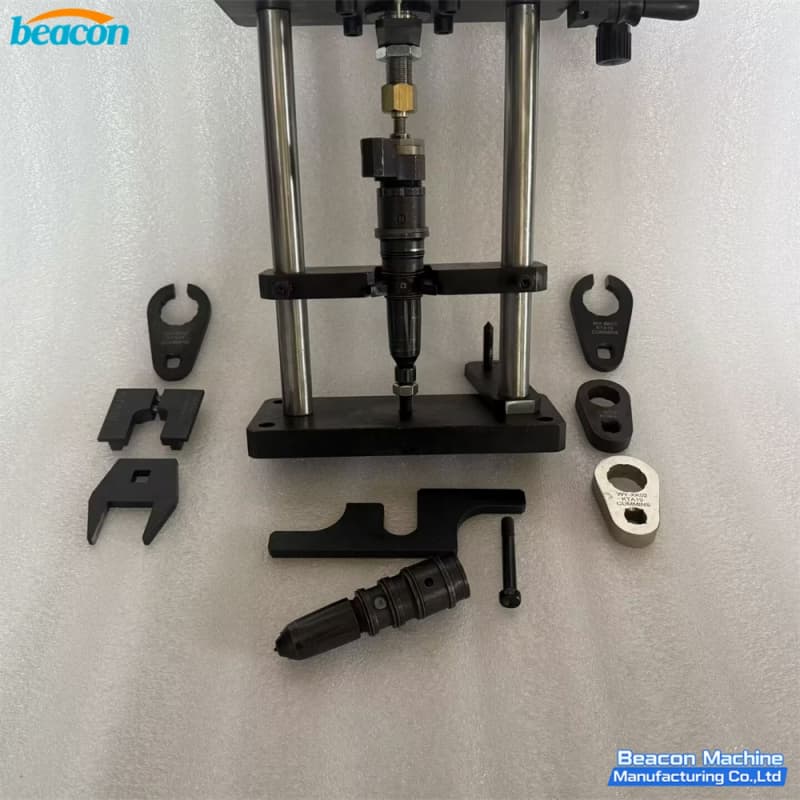

PT injector disassembly fixture with measurement system,Cummins PT injector service measurement equipment

parameter

Parameter	Specification
Model	G4-86
Product Name	PT Injector Disassembly & Measurement Stand
Application	Cummins PT injectors
Function	Disassembly and stroke measurement
Measurement Range	0 – 6 mm
Measurement Accuracy	±0.002 mm
Structure Type	Mechanical precision stand
Fixture Type	Adjustable injector clamp
Material	High-strength alloy steel
Operation Mode	Manual
Compatibility	PT injector series
Mounting Type	Bench-mounted
Surface Treatment	Anti-corrosion coating
Weight	12 kg
Working Environment	Workshop / lab use
